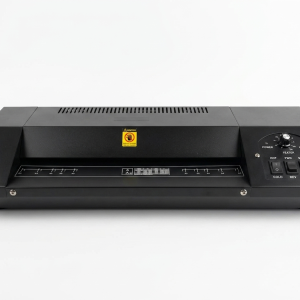

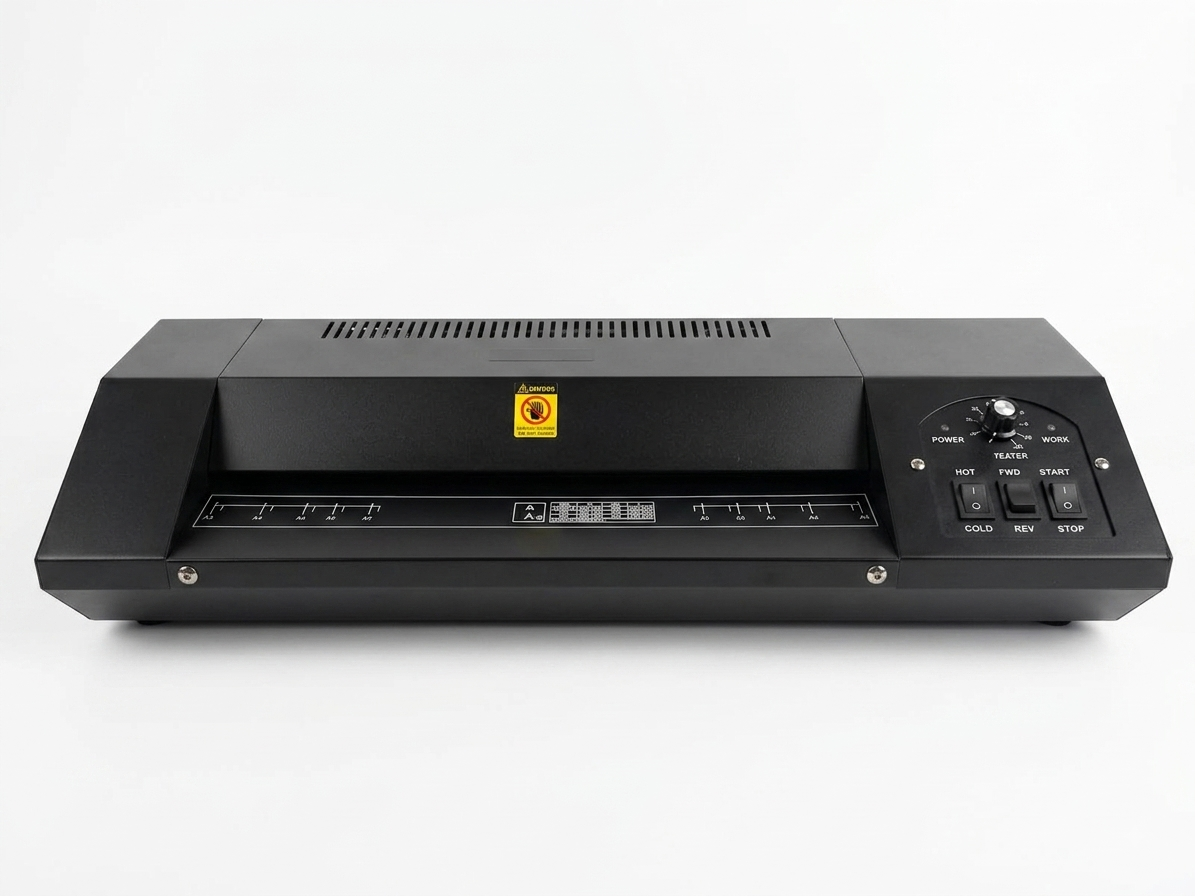

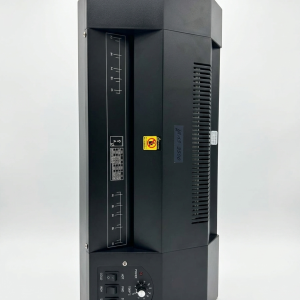

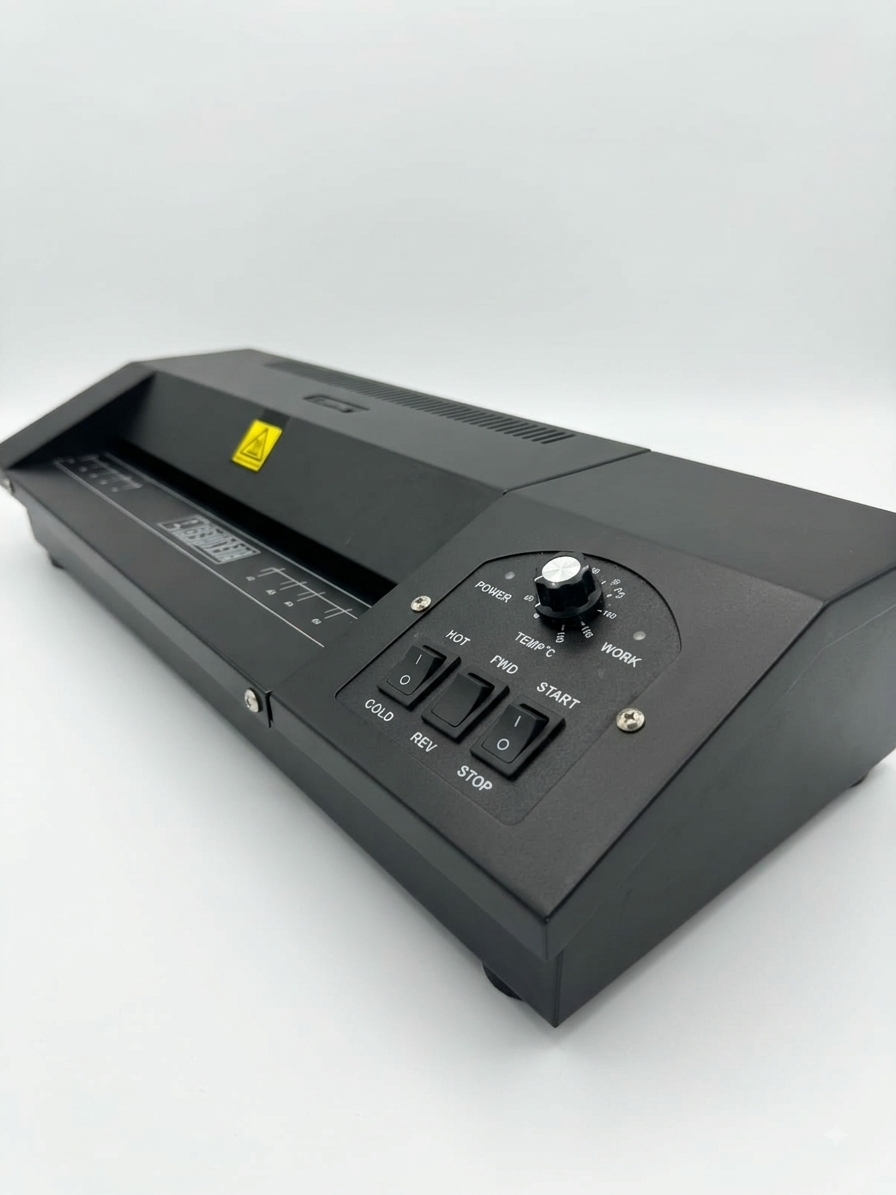

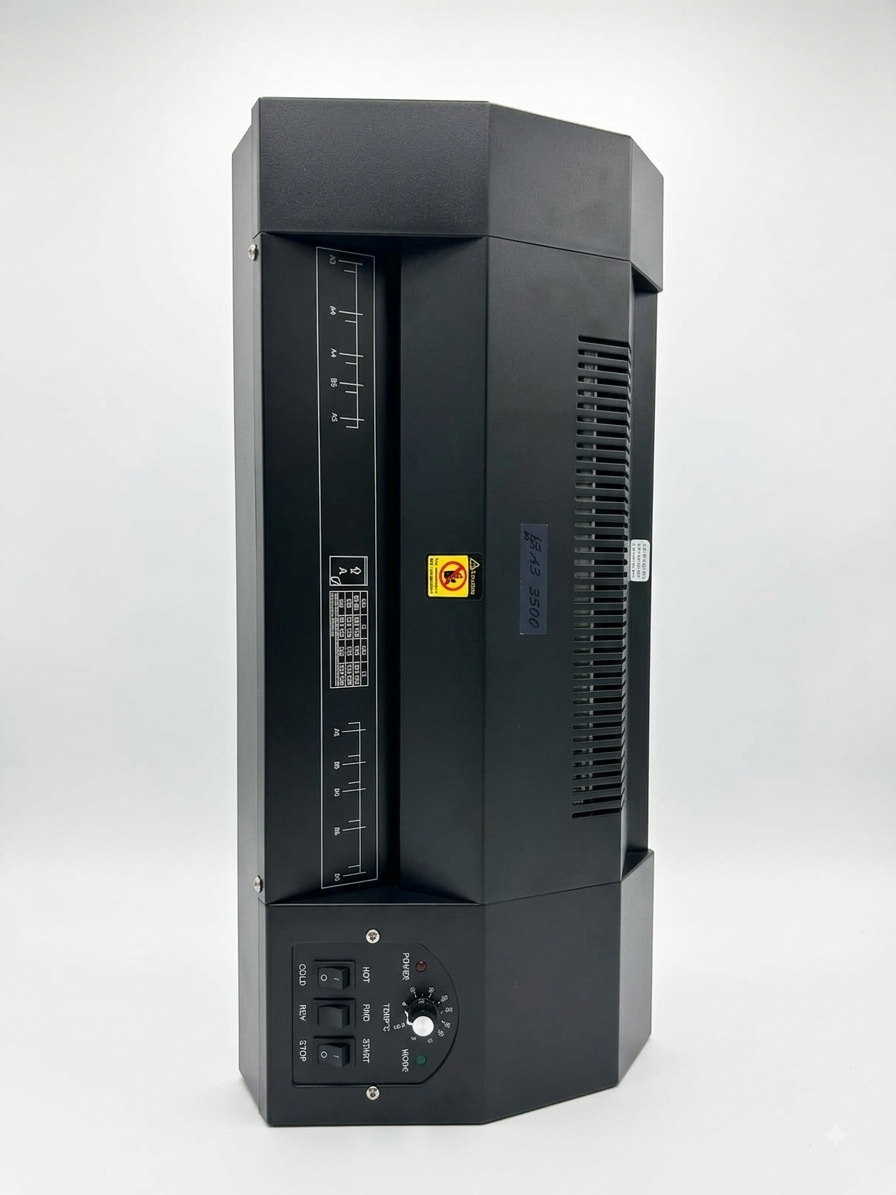

A3 330C Laminator Machine

The A3 330C Laminator Machine is a heavy-duty laminating machine designed for professional, office, educational, commercial, and everyday document-protection requirements. It is suitable for laminating materials up to approximately A3 size, with different A3-330C variants offering a maximum laminating width of 320–330 mm.

🔹 Main Features

• Model: A3-330C / 330C
• Laminating Size: Up to A3
• Maximum Laminating Width: Approximately 320–330 mm, depending on the specific 330C version.
• Laminating Function: Hot & Cold Lamination
• Roller System: Common 330C configurations use 4 rollers for smooth and even lamination.
• Laminating Speed: Up to approximately 0.5–0.6 m/min (500–600 mm/min) depending on the model/variant.
• Temperature Control: Models are available with adjustable ranges around 80°C–180°C; some variants specify wider ranges.
• Laminating Thickness: Certain heavy-duty versions support materials up to 2 mm, while other 330C variants specify different maximum thicknesses, so this should be matched to the exact unit being sold.
• Warm-Up Time: Approximately 3–5 minutes on commonly listed versions.
• Motor: AC geared motor on several A3-330C configurations.
• Heating System: Depending on the version, specifications include Isinglass/mica-sheet heating or other heating systems.
• Power Supply: Common specifications include 220–240V AC, 50/60Hz or 220V AC, 50Hz.
• Power Consumption: Depending on the variant, approximately 420W–620W.
• Body: Heavy-duty models commonly feature a metal body/chassis.
• Weight: Approximately 8–8.5 kg for several heavy-duty versions.

🔥 Hot Lamination

The hot laminating function uses heat to seal the laminating pouch around the document. This is ideal for certificates, photographs, menus, posters, notices, ID cards, educational materials, business documents, price lists, and other frequently handled materials.

❄️ Cold Lamination

The cold laminating function allows suitable cold-lamination materials to be processed without using the heating function. This provides additional flexibility for materials that are better suited to cold lamination.

⚙️ Four-Roller System

The 4-roller configuration is designed to provide controlled feeding and even pressure across the document, helping produce smooth and consistent laminated results. Some listings specifically describe the rollers as helping achieve smooth, bubble-free lamination.

🔄 Reverse / Manual Release Function

Certain A3-330C versions include a reverse function or manual release wheel. This can be useful if a pouch becomes incorrectly positioned or a document gets stuck, allowing the operator to reverse or manually release the material rather than leaving it trapped inside the machine.

🌬️ Cooling System

Some 330C configurations include a built-in cooling fan, designed to help maintain stable operating conditions during operation and support consistent performance during continuous laminating work.

📄 Suitable Materials

The A3 330C can be used for a wide variety of applications, including:

• Certificates & awards
• ID cards
• Photographs
• Posters
• Menus
• Price lists
• Office notices
• Business documents
• Presentations
• Educational materials
• Teaching aids
• Instruction sheets
• Name tags
• Display cards
• Signs
• Artwork
• Craft projects
• Frequently handled documents

📏 Supported Paper Sizes

Because of its A3-class laminating width, it can be used for A3, A4, A5, A6, and smaller documents, provided the pouch and material specifications are appropriate for the particular machine.

🏢 Ideal For

The A3 330C is well suited for:

• Offices
• Schools
• Universities
• Printing centers
• Stationery shops
• Photocopy centers
• Businesses
• Government offices
• Corporate offices
• Home offices
• Educational institutions
• Commercial laminating services
