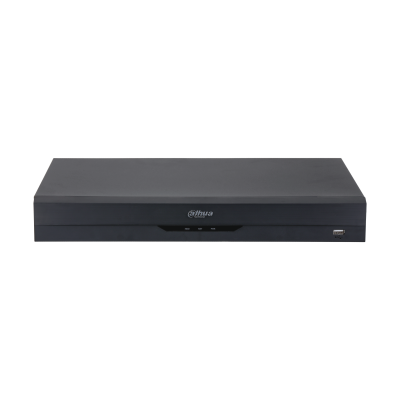

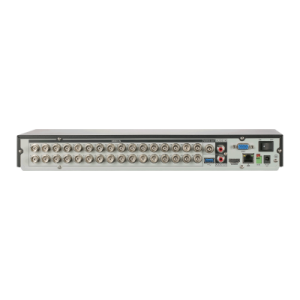

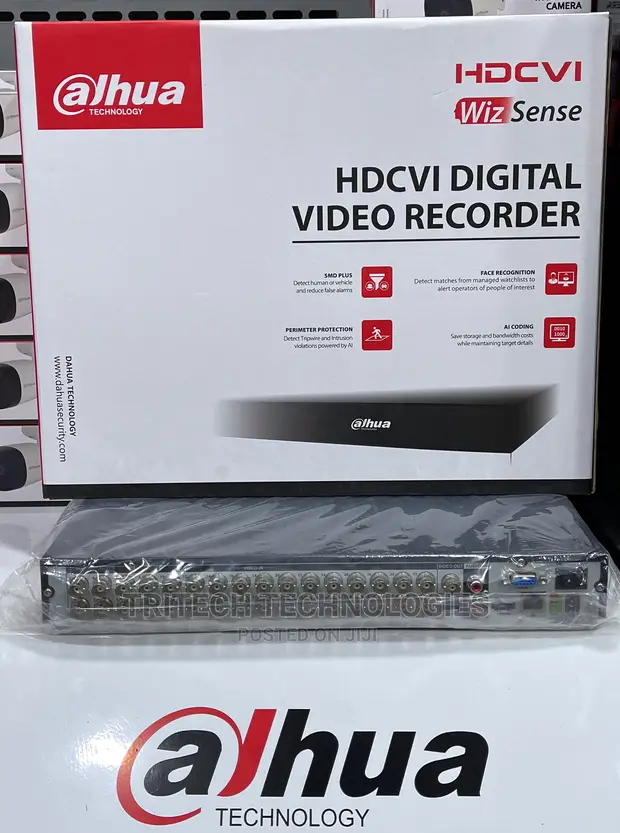

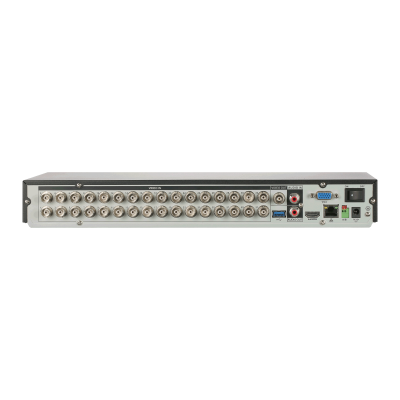

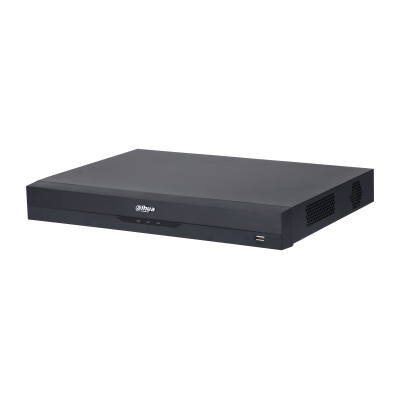

DH-XVR5232AN-13 Dahua Digital Video Recorder

The Dahua DH-XVR5232AN-13 is a high-end Digital Video Recorder (DVR) designed for large-scale surveillance systems. With support for up to 32 channels, this powerful DVR delivers superior video quality with up to 4K recording resolution. Ideal for commercial and enterprise security setups, it offers multiple storage options, remote viewing, and advanced features to ensure comprehensive monitoring and easy management.

Key Features

• Channel Support: Up to 32 channels for extensive coverage in large installations.
• High-Resolution Recording: Supports up to 4K resolution for clear, detailed video.
• Storage Options: Multiple storage devices can be connected for large video storage.
• Remote Monitoring: Access and control your surveillance system remotely via mobile or desktop apps.
• Advanced Playback: Flexible video playback options for quick retrieval of footage.
• Seamless Integration: Fully compatible with Dahua’s range of cameras for an integrated solution.

Specifications of DH-XVR5232AN-13 Dahua Digital Video Recorder

• Video Inputs:
  • 32 Channels for HDCVI / Analog / IP video input
  • Supports a mix of HDCVI, Analog, and IP cameras for versatile installations
  • Maximum 8MP resolution for HDCVI inputs
  • 32 IP Camera Inputs: Supports up to 12MP resolution for IP cameras
• Video Output:
  • HDMI Output: 1 x HDMI (supports up to 4K resolution)
  • VGA Output: 1 x VGA (up to 1920 x 1080 resolution)
• Resolution:
  • Max Resolution: Up to 8MP for HDCVI cameras
  • Recording Resolution: Up to 1080p on all channels for real-time recording
  • Playback Resolution: Supports up to 1080p
• Compression:
  • Video Compression: H.265+/H.265/H.264+/H.264 for efficient video compression and reduced storage requirements
  • Audio Compression: G.711u
• Audio Inputs/Outputs:
  • Audio Input: 1 x RCA (for connecting external microphones)
  • Audio Output: 1 x RCA (for external audio devices or speakers)
• Storage:
  • Hard Drive: 2 x SATA ports (supports up to 10TB HDD per port)
  • Total Storage Capacity: Up to 20TB (with two hard drives)
  • Backup: USB, network, and cloud backup options
• Network:
  • Ethernet: 1 x RJ-45 Ethernet port (supports 10/100/1000Mbps)
  • Remote Viewing: Mobile app (iOS/Android), Smart PSS software, and PC software (DSS Express)
  • P2P (Peer-to-Peer) for simplified remote access without port forwarding
• Power Supply:
  • Power Input: DC 12V, 6A
  • Power Consumption: 30W (typical), 4W (standby mode)
• PTZ Control:
  • Supports PTZ (Pan-Tilt-Zoom) control for compatible cameras via RS-485 interface
• Dimensions:
  • Dimensions: 440mm (W) x 315mm (D) x 58mm (H) (approx.)
  • Weight: Approx. 4.1 kg (without HDD)
• Operating System: Embedded Linux operating system
• Additional Features:
  • Smart Search for event-based video review and search by motion or alarm events
  • Digital WDR (Wide Dynamic Range) for enhanced visibility in high-contrast lighting
  • 3D DNR (Digital Noise Reduction) for improved image quality in low-light environments
  • Motion Detection and Alarm Trigger recording modes
  • Multiple Recording Modes: Continuous, Manual, Scheduled, Motion Detection
  • Alarm Inputs/Outputs: 16 alarm inputs and 8 alarm outputs for enhanced system integration
  • User Management: Supports multiple user access with customizable permissions
  • Redundant Recording: Supports redundant storage for increased data security

Why Choose the DH-XVR5232AN-13?

• Scalable and Flexible: Perfect for large security setups needing multiple channels.
• High-Resolution Recording: Ensure crystal-clear footage with up to 4K quality.
• Convenient Remote Control: Easily manage your surveillance system from anywhere.

The Dahua DH-XVR5232AN-13 DVR is ideal for organizations seeking robust and high-quality surveillance with the flexibility to expand as their security needs grow.
